4cyl Basic Individual Throttle Body ITB Set DCOE/DHLA
4cyl Basic Individual Throttle Body ITB Set DCOE/DHLA
$427.51
4cyl Basic ITB Set includes twin throat throttle bodies, Cable Attachment, Master Lever Balance, coupling O rings, TPS fitting adapter. 4cyl ITB suits many vehicles. ITB system.
4cyl Basic ITB Set
This is a good baseline set that has all the critical parts needed for a successful ITB system.
Standard DCOE / DHLA bolt pattern
Included is a Master Lever with idle adjustment, secondary return spring, wide open stop and M5 threaded hole for drop link attachment.
Top mount Universal Linkage Mechanism (not included with this set) will attach directly to this master lever. The universal mechanism is configurable in many variations to suit many different vehicles. It will enable progressive opening movement to enhance light throttle control.
All body and linkage parts are precision CNC machined from 6061 billet Aluminum
Center-less ground 12L14 steel shafts black oxide finish
High precision 7 Degree brass throttle plates
Sealed ball bearing shaft fitment for smooth reliable operation.
Standard DCOE /DHLA bolt pattern front and rear.
24mm thickness, 90mm throat centers
O rings both sides for instant manifold seal no gaskets required

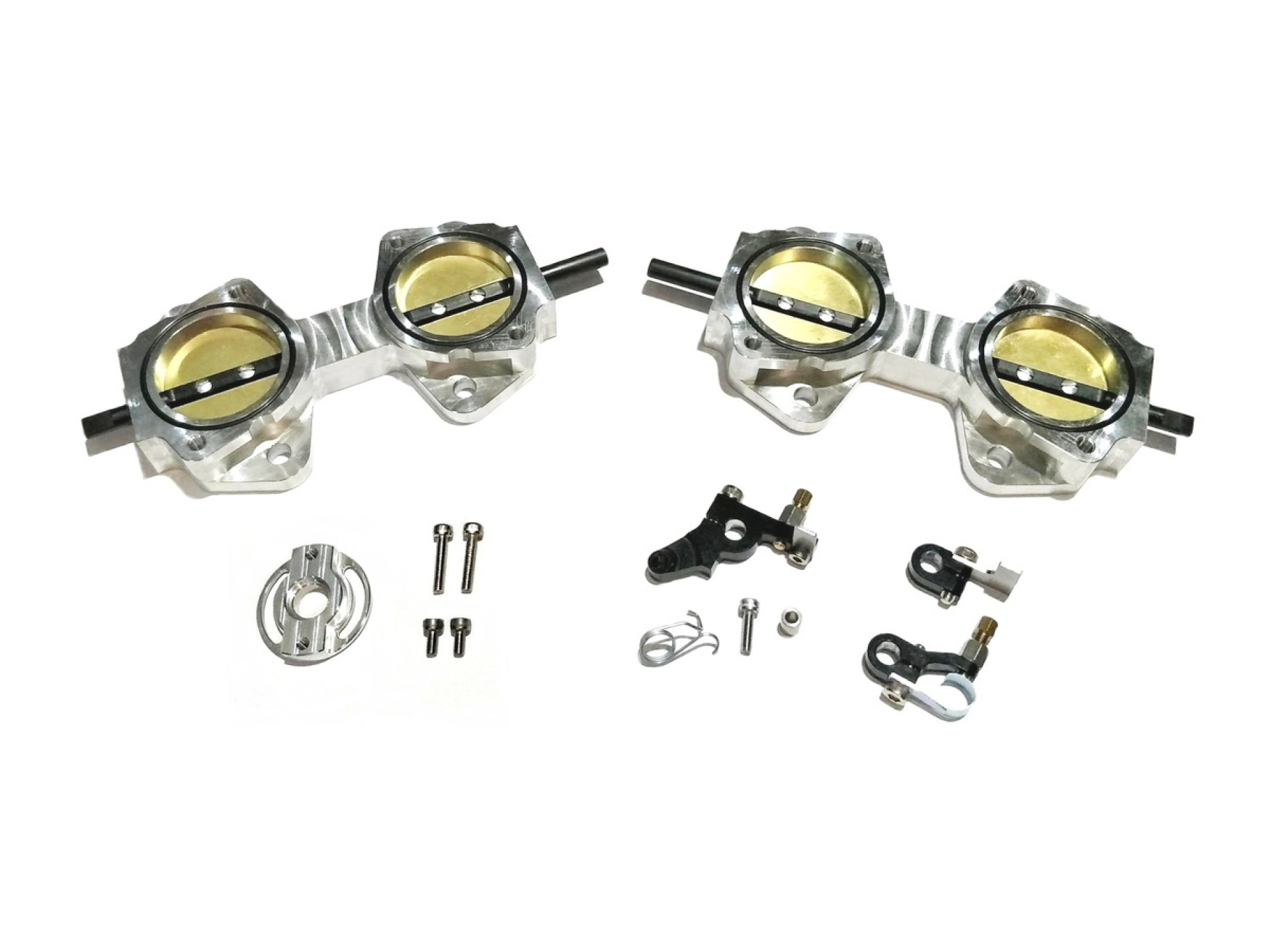

Included with this kit:
2 x twin throat throttle bodies
1 x Master Lever
1 x Balance coupling
8 x O rings
1 x TPS fitting adapter
Please read our ITB SIZE SELECTION article to help you choose the correct ITB for your application
Available ITB sizes 40mm, 42mm, 45mm
Additional information
| Weight | N/A |
|---|---|
| Size | 40mm, 42mm, 45mm |
