6cyl Basic Individual Throttle Body ITB Set DCOE/DHLA
6cyl Basic Individual Throttle Body ITB Set DCOE/DHLA
$643.06
6cyl Basic Individual Throttle Body ITB Set. Universal set to fit many vehicles. Twin throat throttle bodies, Master lever, Balance couplings, TPS, fitting adapter.
6 Cylinder Basic ITB Set
This is a good baseline set that has all the critical parts needed for a successful ITB system.
Standard DCOE / DHLA bolt pattern
Included is a Master Lever with idle adjustment, secondary return spring, wide open stop and M5 threaded hole for drop link attachment.
Top mount Universal Linkage Mechanism (available seperately) will attach directly to the master lever. The universal mechanism is configurable in many variations to suit many different vehicles. It will enable progressive opening movement to enhance light throttle control.
All body and linkage parts are precision CNC machined from 6061 billet Aluminum
Center-less ground 12L14 steel shafts black oxide finish
High precision 7 Degree brass throttle plates
Sealed ball bearing shaft fitment for smooth reliable operation.
Standard DCOE /DHLA bolt pattern front and rear.
24mm thickness, 90mm throat centers
O rings both sides for instant manifold seal no gaskets required

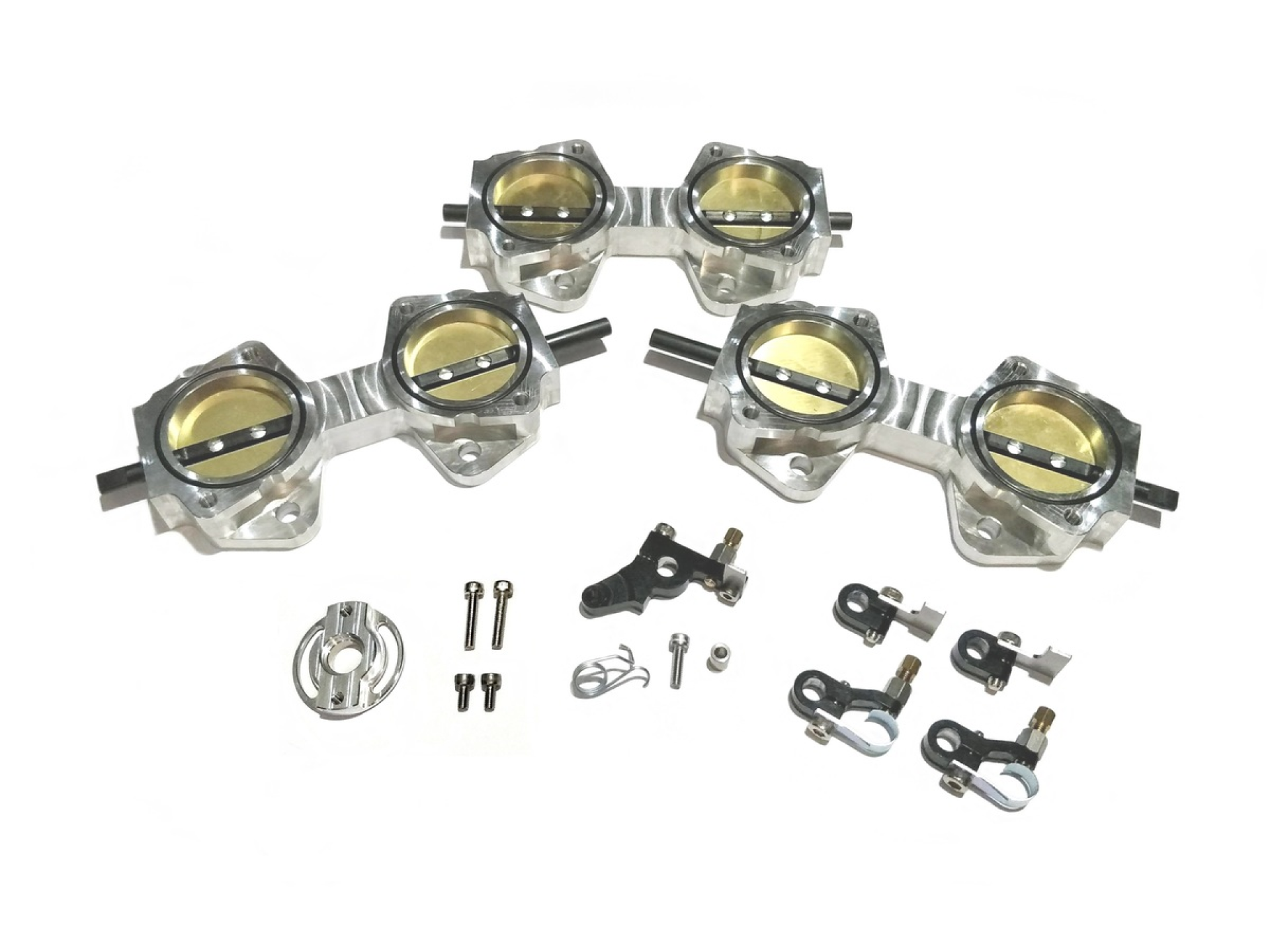

Included with this kit:
3 x twin throat throttle bodies
1 x Master Lever
2 x Balance couplings
12x O rings
1 x TPS adapter for e36 BMW tps
Available ITB sizes 40mm, 42mm, 45mm
Additional information
| Weight | N/A |
|---|---|
| Size | 40mm, 42mm, 45mm |
