RHD’S 293RWHP 2.9L RACE ENGINE

[wpseo_breadcrumb]

Bmw M20 Engine 2940cc Fitted With Rhd Itb 1 870x580

Bmw M20 engine 2940cc

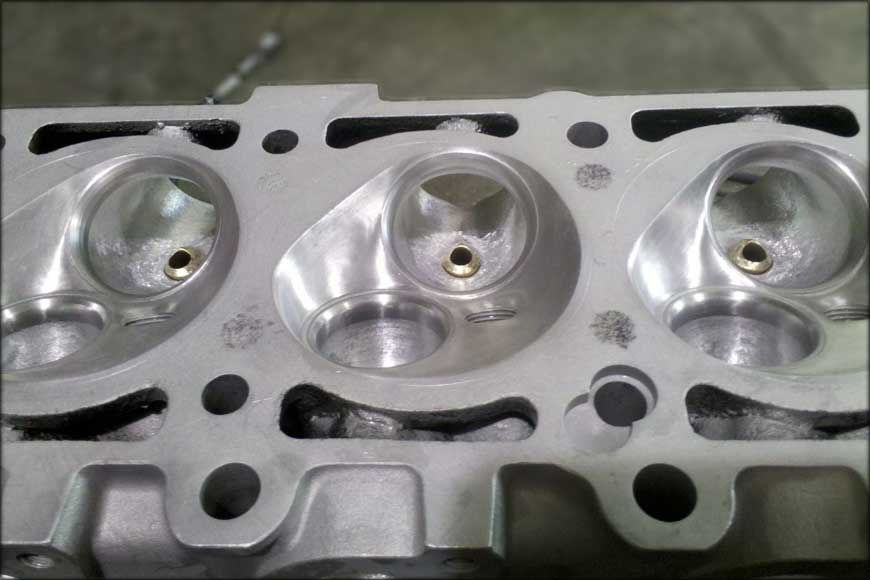

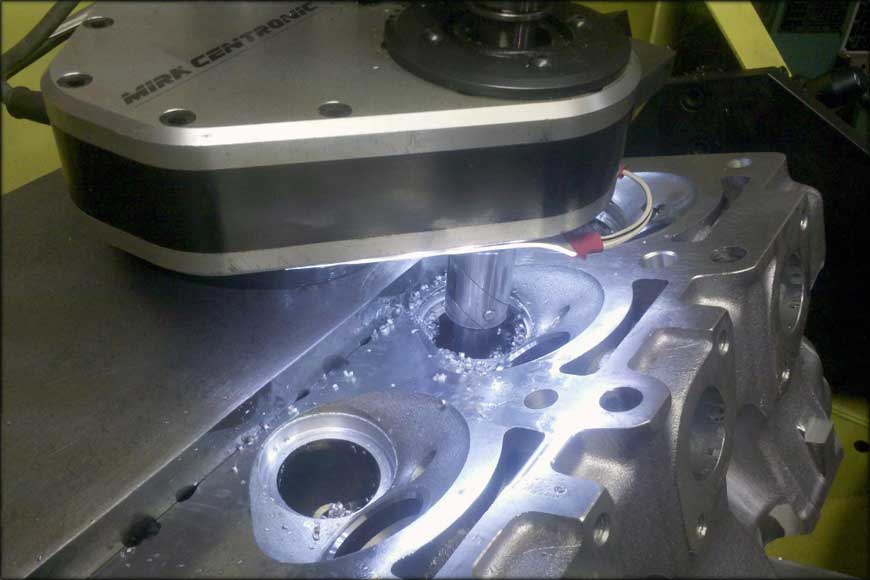

Bmw M20 engine 2940cc, RHD developed and built head, RHD roller cam, RHD ITB intake and Stainless exhaust

Build Sheet

Vehicle 1981 E21 323i BMW Improved Production Circuit Race
Weight 1050Kg
Engine 2Valve Inline 6 Cyl  2940cc
Fuel Premium Pump Fuel
Ignition MSD  Dis-4 CDI 3 x duel coil waste spark
Intake RHD 40mm throttle bodies
Bore /Stroke 85/86mm
Comp 12.3:1

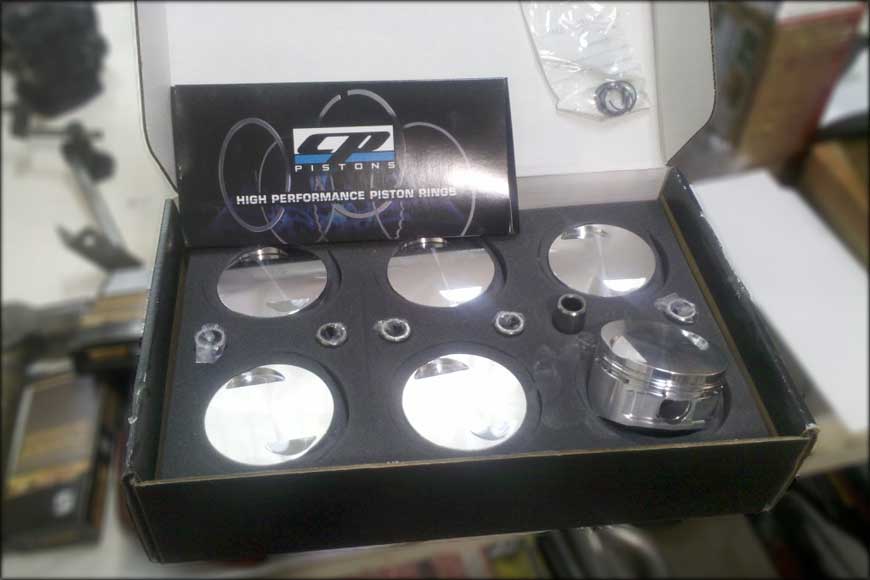

Pistons CP forged
Rods PPM H-beam 135mm
Valves Trickflow Stainless 44/36
Springs Eibach, Titanium  retainers

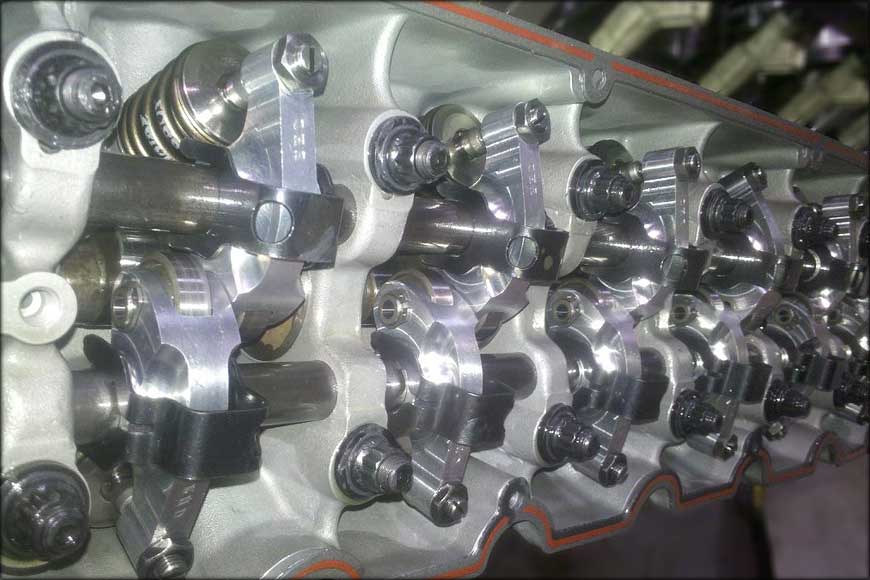

Cam RHD roller, 306 duration

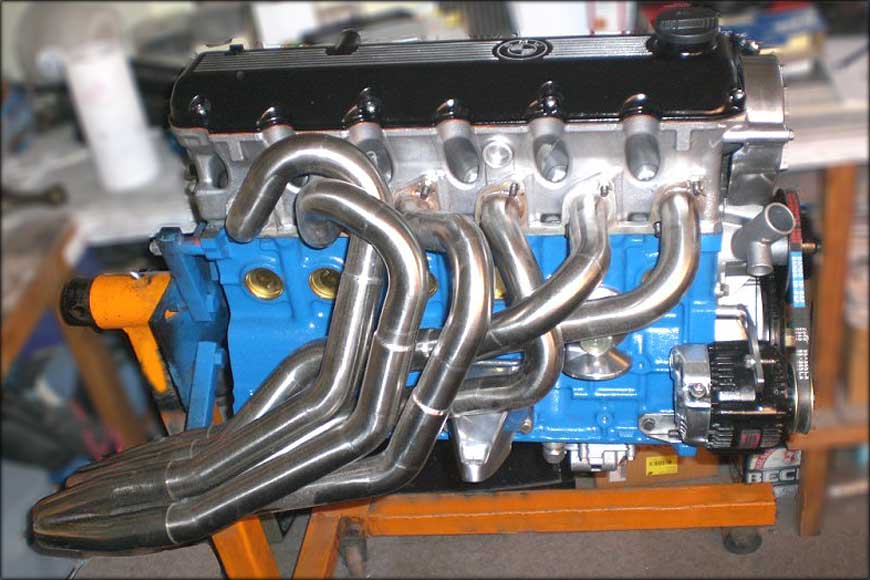

Exhaust Custom built 38/41mm tuned stainless headers

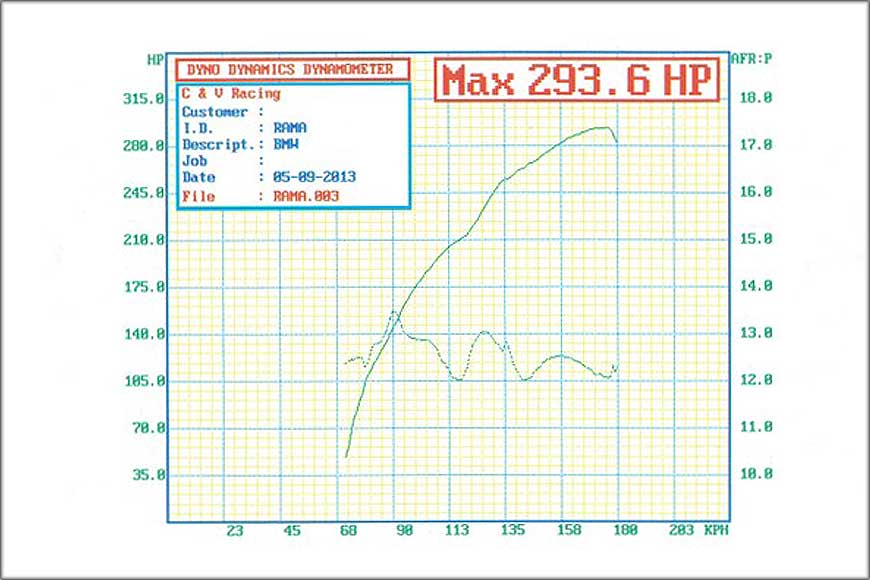

Power 293 rwHp Dyno Dynamics shoot-6 (no corrections)



Bmw M20 Engine 2940cc Fitted With Rhd Itb 5 870x580 Bmw M20 Engine 2940cc Fitted With Rhd Itb 4 870x580 Bmw M20 Engine 2940cc Fitted With Rhd Itb 6 870x580 Bmw M20 Engine 2940cc Fitted With Rhd Itb 9 870x580 Bmw M20 Engine 2940cc Fitted With Rhd Itb 3 870x580 Bmw M20 Engine 2940cc Fitted With Rhd Itb 10 870x580 Bmw M20 Engine 2940cc Fitted With Rhd Itb 8 870x580 Bmw M20 Engine 2940cc Fitted With Rhd Itb 13 870x580 Bmw M20 Engine 2940cc Fitted With Rhd Itb 11 870x580 Bmw M20 Engine 2940cc Fitted With Rhd Itb 12 870x580 Bmw M20 Engine 2940cc Fitted With Rhd Itb 2 870x580 Bmw M20 Engine 2940cc Fitted With Rhd Itb 7 870x580

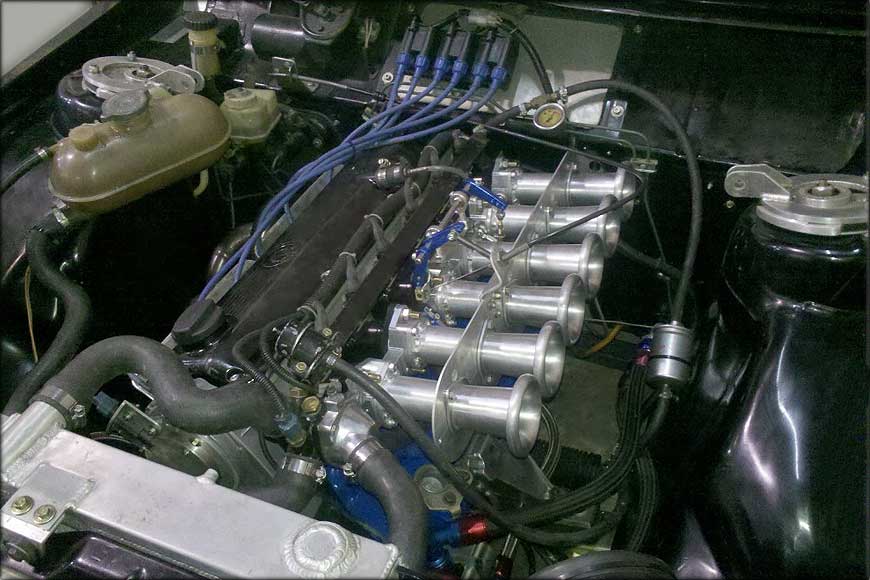

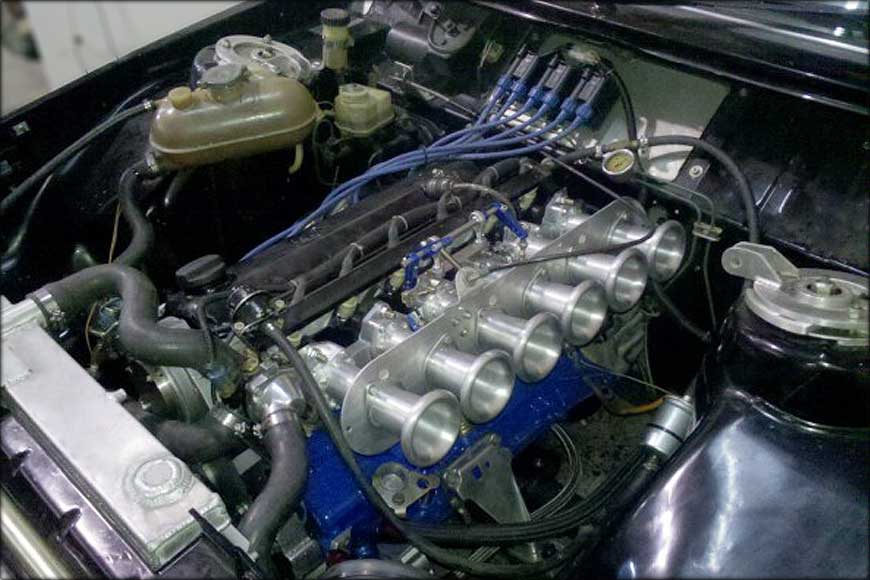

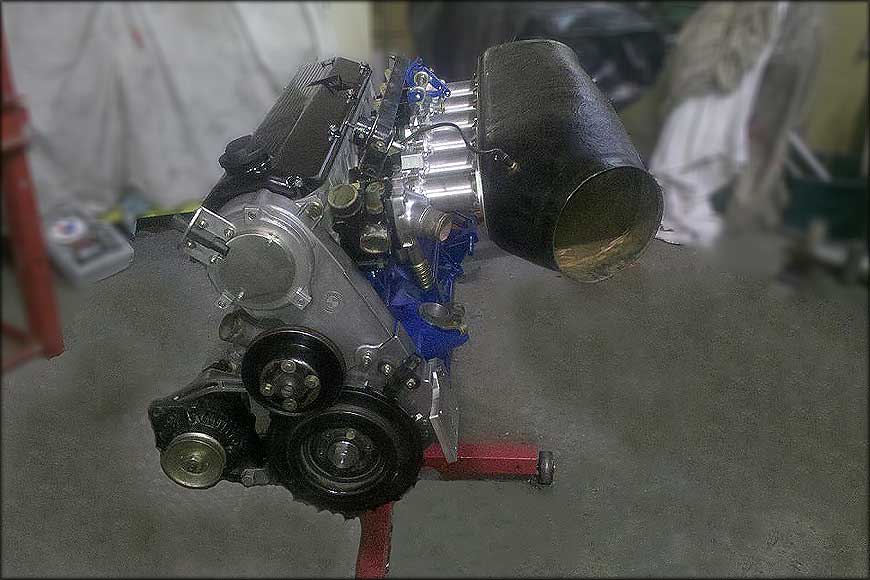

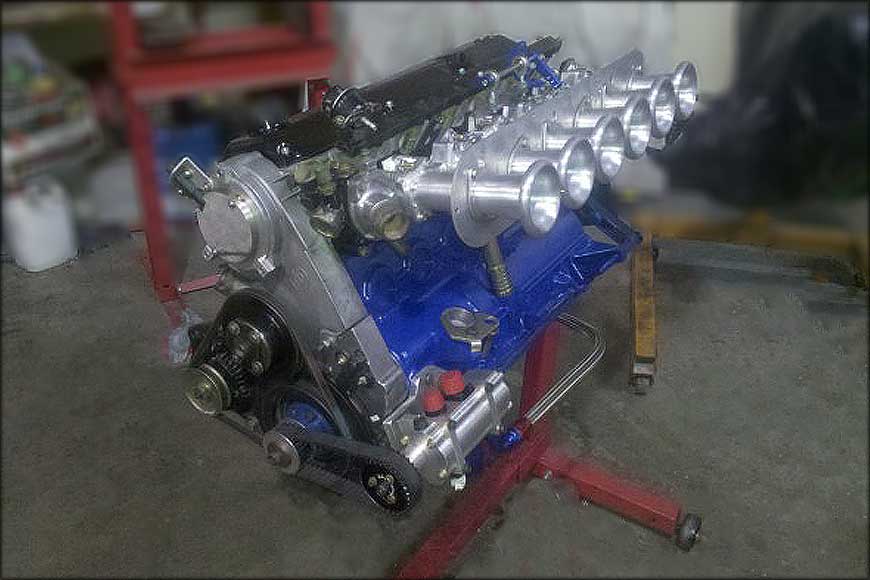

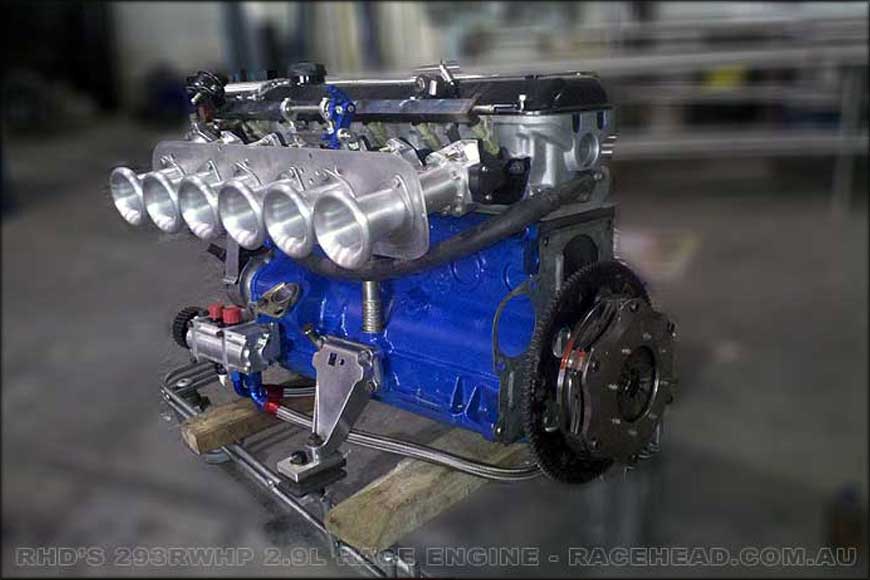

MW M20 ENGINE 2940CC, RHD DEVELOPED AND BUILT HEAD,
RHD ROLLER CAM, RHD ITB INTAKE AND STAINLESS EXHAUST
